DAVID RICHARDS, ARCHITECT
COMMERICAL - MULTI FAMILY, RESIDENTIAL DORMITORY BUILDINGS
Northwest Addition - First Floor Plan
Northwest Addition - Second Through Fifth Floor Plans
Northwest Addition - North Elevation
Northwest Addition - East Elevation
Northwest Addition -West Elevation
Northwest Addition - South Elevation
Revit Rendering from Northeast Corner
(The recently renovated dormitory building is on the right. The proposed dormitory Phase 2 Southeast building addition is on left)
Revit Rendering from North
(Recently renovated dormitory building is on the left. The Proposed Dormitory Phase 2 Northwest building addition is on right)
Freshmen Dormitory - First Floor Plan
Freshmen Dormitory - Second Through Fifth Floor Plans

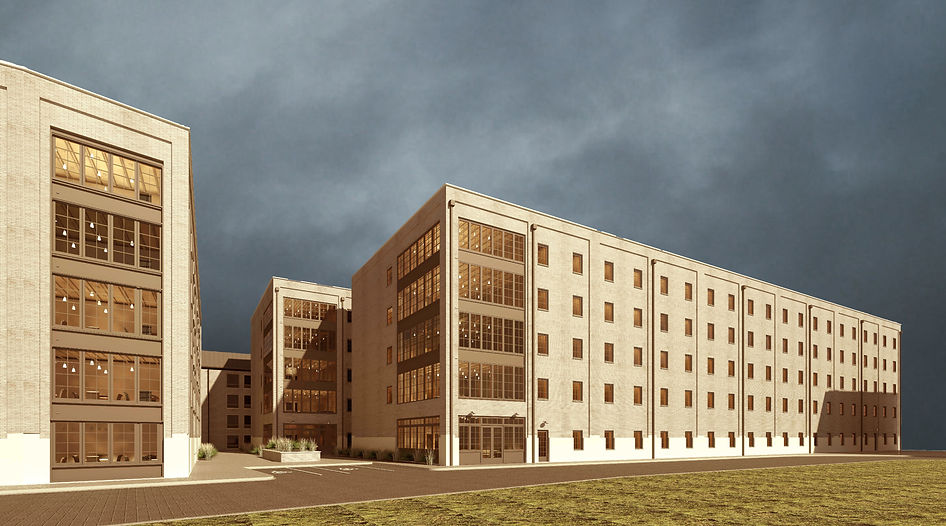

Revit Rendering from West
(The Proposed Dormitory Phase 2 - Northwest building dormitory addition to the original building is on left. The new freshmen dormitory building is on the right)
Revit Rendering from West
(The Proposed Dormitory Phase 2 - Northwest building dormitory addition to the original building is on left. The new freshmen dormitory building is on the right)
Site Plan
Southeast Addition - First Floor Plan
Southeast Addition - Second Through Fifth Floor Plan
Southeast Addition - North Elevation
Southeast Addition - South Elevation
Southeast Addition - East Elevation
Southeast Addition - Building Section
Freshmen Dormitory - West Elevation
Freshmen Dormitory - North Elevation
Freshmen Dormitory -South Elevation
Freshmen Dormitory - East Elevation
99 St. Philip Street - Phase 2
Charleston, SC
Project; Additions to Existing Residence Hall and a new Freshmen Dormitory Building
Project Overview:
Phase 2 of the 99 St. Philip Street project is to design and construct two separate additions to the existing recently renovated building detailed in the Commercial portion of this web site. The Southeast addition to the existing structure provides twenty new bedroom suites and totals 16,900 square feet of new building area. The Northwest addition to the existing structure provides fifty-five new bedroom suites and totals 48,000 square feet of new building area. The Freshmen Dormitory is a 100,000 Square Foot Building containing 150 Two Bedroom Units housing potentially 600 students.
